Evaluation of Creep Parameters in Geopolymers Derived From Mining Industry Waste

F.A. Huamán-Mamani1, J.F. Gamarra-Delgado1, J.J. Paredes-Paz1, V.C. Bringas-Rodríguez1, D.L. Mayta-Ponce1 and G.P. Rodríguez-Guillén1

1Grupo de Investigación en Ciencia y Tecnología de Materiales, Departamento de Ciencias Naturales, Universidad
Católica San Pablo, Arequipa, Perú
Urb. Campiña Paisajista, Quinta Vivanco s/n, Arequipa 04001, Perú
fhuaman@ucsp.edu.pe; frank.gamarra23@gmail.com; janice.paredes@ucsp.edu.pe; veronicawnh@gmail.com;
dlmayta@ucsp.edu.pe; gprodriguez@ucsp.edu.pe

Abstract - Geopolymeric materials have recently been considered a revolutionary class of materials, due to the diversity of applications where they can be used, this derived from their good mechanical resistance, thermochemical stability and good fire resistance. From 1970 to the present, a notable increase has been observed in the number of scientific publications dealing with the synthesis and applications of geopolymeric materials with industrial application. Several publications have reported geopolymers as alternative materials to Portland cement, which will allow having a green construction industry in the coming years. The elaboration of geopolymeric materials is relatively simple, beginning with the identification of a source rich in amorphous aluminosilicates and a hardening compound (mainly alkaline in nature) which are properly mixed until a homogeneous and workable paste is obtained, then can harden at room temperature and acquire good mechanical resistance in a few hours. On the other hand, mining in Peru is one of the most important industries due to its contribution to the economic development of the country. However, mining is also one of the industries with the greatest negative impact on the environment, mainly due to the enormous amount of inorganic waste that it generates and which is currently accumulated without any prospect of recycling or reuse. Therefore, this research was conducted to elaborate concretes from mining tailings and to evaluate their mechanical behavior in creep (between 500 and 600 ºC). The results obtained allow us to propose the use of mining tailings for the elaboration of geopolymeric thermal barriers that work in conditions of intermediate temperatures, up to 600 ºC.

Keywords: Construction, creep, geopolymer concrete, mining tailings

© Copyright 2020 Authors This is an Open Access article published under the Creative Commons Attribution License terms. Unrestricted use, distribution, and reproduction in any medium are permitted, provided the original work is properly cited.

Date Received: 2019-08-20
Date Accepted: 2020-09-21
Date Published: 2020-10-19

1. Introduction

Geopolymer is a class of synthetic and inorganic materials obtained at room temperature by a chemical process which involves the solubilization of amorphous phases of aluminosilicates present in industrial solid waste, calcined clays, natural minerals, among others, by the action of an agent of alkaline activation [1,2]. Geopolymers have been attracting the attention of the scientific community in recent years, due to the variety of applications in which they can be used, this derived from their excellent fire resistance, low density, low cost, easy manufacturing, excellent chemical stability. / thermal and eco-friendly synthesis [3,4].

In recent years, geopolymers have being investigated as alternative materials to Portland cement [5,6] and in various applications in the construction industry. Several works have reported that geopolymeric concretes have the capacity to develop up to 70% of maximum compressive strength within the first 4 hours of curing [7], compared to Portland cement concretes that require up to 28 days to achieve their maximum mechanical resistance. On the other hand, geopolymeric concrete shows very little shrinkage due to drying, it was found that after one year it presents between 5 to 7 times less shrinkage than Portland cement concrete [8,9]. The negative influence of sulfates on Portland cement concrete has been reported, which drastically reduces its mechanical resistance, which is explained by the reaction of sulfates with the calcium present in Portland cement and which leads to the formation of phases of greater volume (gypsum and ettringite), which in turn generate cracks within the material [10], on the other hand, geopolymeric concrete does not present this type of problem because its properties depend on other types of reactions (in the absence of calcium) [11.12].

Geopolymeric concretes exhibit good mechanical response to high temperatures compared to their Portland cement concrete counterparts; in this regard, Kong et al. [12] studied the mechanical response of geopolymeric and Portland cement pastes after being subjected to high temperatures, finding that while at 800 °C the geopolymeric paste improves its resistance to compression, the Portland cement paste, at 400 °C, lost all its residual resistance, this loss of resistance of the Portland cement paste was attributed to the decomposition of Ca(OH)2 at approximately 400 °C.

Among the most important components of conventional concrete the presence of Portland cement stands out, which is basically a mixture of gypsum and Clinker, the latter is obtained by calcining limestone and clay at temperatures between 1350 and 1450 °C. Obtaining the Clinker is accompanied by large CO2 emissions. In this regard, it has been determined that a cement furnace produces approximately 0.8 tons of CO2 for every ton of Portland cement [13]. On the other hand, the accumulation of large amounts of mining tailings, as a consequence of mining in Peru constitutes one of the main environmental problems in our region. Currently, there is not an adequate mining waste management system, therefore, it is important to propose new alternatives for the use of this waste [14-16]. In this sense, this work is very important for the environmental care of Peru.

2. Materials and Methods

2.1. Raw Material and Matrix of Mixtures

Geopolymeric concretes (GCs) were manufactured by geopolymerizing mining tailings dust (MT) and an alkaline solution of 9 molar Na(OH), with the addition of a controlled amount of fine sand (FS). The experimental Simplex Lattice design was used to determine the matrix of GC mixtures. This design allows defining volumetric concentrations in a mixture. To convert the volumetric concentrations into mass concentrations, the real density of the precursor materials was determined. The real density was determined using a glass pycnometer and distilled water. In addition, equation 1 was used.


mA = measurement of the mass of the clean, dry and empty pycnometer and the stopper.

mB = measurement of the mass of the dry pycnometer, the test sample and the stopper.

mC = measurement of the mass of the pycnometer filled with distilled water until it is level and the stopper.

mD = measurement of the mass of the pycnometer, test sample, the stopper and distilled water until it is level. In this last measure, it must be ensured that there are no air bubbles and in all measures ensure that the external surface of the pycnometer is completely dry and clean.

The values found for the real average density of MT and FS were 2.83 and 3.07 g/cm3, respectively, and were used to determine the most important substances of the raw materials shown in Table 1.

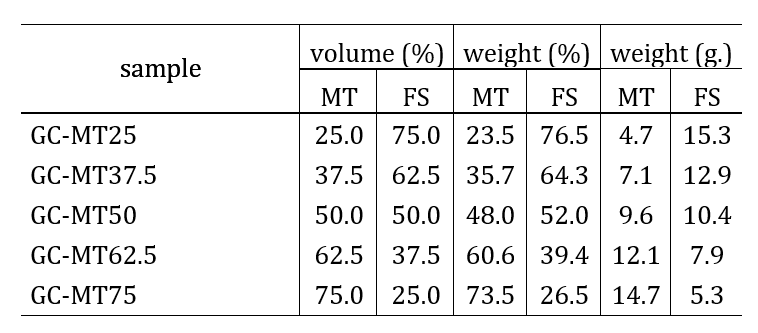

Table 1: Composition of the materials prepared in this research.

2.2. Elaboration of Geopolymeric Concrete

The MT used in this research was provided by CEPROMET SAC (Peruvian company dedicated to the transformation of gold minerals) and the FS was acquired from a local hardware store. MT and FS were ground separately and then sieved through ASTM No. 140 mesh. The elaboration of GC samples began by measuring adequate amounts of MT and FS (based on 20 g and according to Table 1). For each type of GC samples, MT and FS were dry mixed for 5 minutes and then 5 ml of 9 molar Na(OH) solution was added, mixing was continued for an additional 5 minutes until obtaining a workable and homogeneous paste. The geopolymeric pastes were pressed at 20 MPa and for 5 minutes in a 20 mm diameter cylindrical steel mold. After the demolding process, the samples were placed in hermetic bags at room temperature for 24 hours and then they were oven dried at 80 ºC for another 24 hours. Fig. 1(a) shows the macroscopic appearance of the fabricated samples.

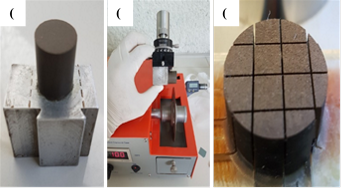

Fig. 1: Procedure for cutting geopolymeric parallelepipeds: (a) Macroscopic appearance of a geopolymeric cylinder, (b) cutting parallel to the cross section and (c) parallelepipeds obtained after cuts perpendicular to the cross section of geopolymers.

Each cylindrical geopolymer sample was cut into parallelepipedic samples approximately 5x5x10 mm in size. A low speed precision cutter equipped with a diamond edge cutting disc was used in all cuts (Fig. 1 (b)). It started with two parallel cuts (Fig. 1 (b)) to obtain 10 mm high discs, then cuts were made perpendicular to the cross section of the cylinders to obtain parallelepipeds (Fig 1 (c)).

The geopolymeric parallelepipeds were used for the physical, morphological and mechanical characterization that will be presented later.

2.3. Physical, Morphological and Mechanical Characterization of Geopolymeric Concrete

The physical characterization of the GCs consisted of determining their geometric density from the measurement of the dimensions and masses of three samples. Morphological characterization was performed on polished GC surfaces, for which the metallographic preparation of the surfaces began, which consisted of two stages: (i) roughing with SiC abrasive paper (# 600, # 800 and # 1200) and (ii) mechanical polishing with cloths, polishing slurry and 6, 3 and 1 micron particle size diamond paste. The surfaces, after polishing, were cleaned with distilled water and dried in the sun. Finally, the polished and dry surfaces were observed in a light microscope in reflection mode.

The mechanical characterization carried out in this research consisted of creep tests at constant load and temperatures between 500 and 600 ºC. All tests were performed after 28 days of curing of the GCs. In general, creep tests allow evaluating the deformation rate of materials when subjected to constant stress and temperature conditions. By subjecting a material to constant stress, microscopic mechanisms are activated, allowing it to accommodate external stress through its stationary deformation (creep). The creep of materials at room temperature is too slow and it takes several years to study it adequately, however, there are modern creep equipment that allows the material deformation process to be accelerated, including temperature as an independent variable. All creep tests were performed on 5x5x10 mm parallelepiped samples.

In order to evaluate the microscopic mechanisms of stationary deformation in the GC samples, it was necessary to define stress and temperature ranges in which these mechanisms become important. In this research, prior to creep studies, the maximum resistance to uniaxial compression of GC samples as a function of temperature was studied. In these first tests the GCs were subjected to forced deformation at a constant compression rate of 0.05 mm/min and temperatures of 500 and 600 ºC until the material fractured. With the results obtained at constant compression rate, it was possible to determine the stress and temperature ranges for the creep tests. Fig. 2 shows a diagram of the creep machine used in the research.

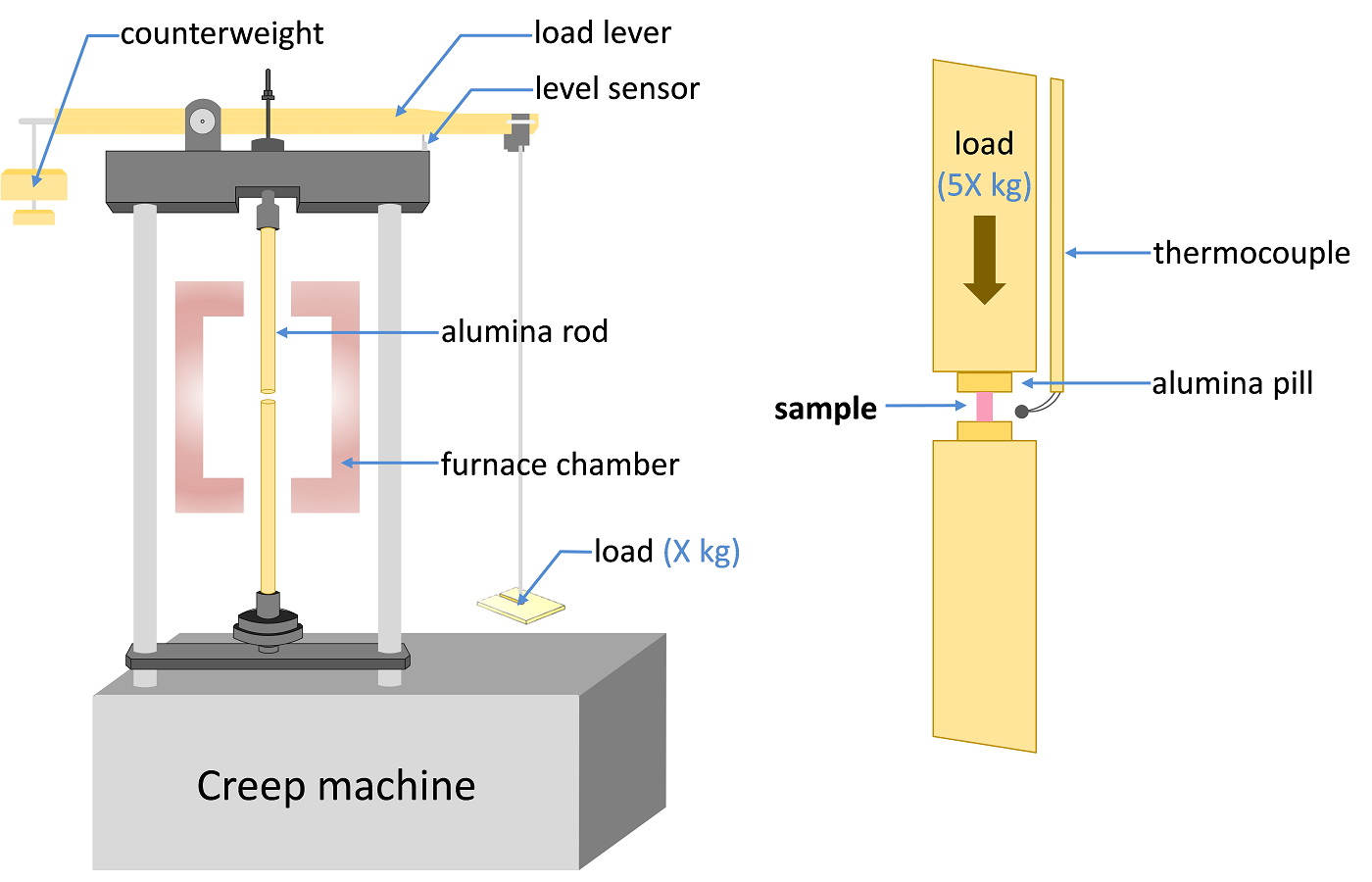

Fig. 2: Diagram of the creep machine used in the investigation.

3. Results and Discussions

3.1. Physical and Morphological Characterization

Regarding the physical characterization of the GC samples, it was not possible to identify a correlation between the initial volumetric composition (Table 1) and the average geometric density. In general, all the GCs studied in this research presented geometric densities of around 1.90 g/cm3 (Table 2)

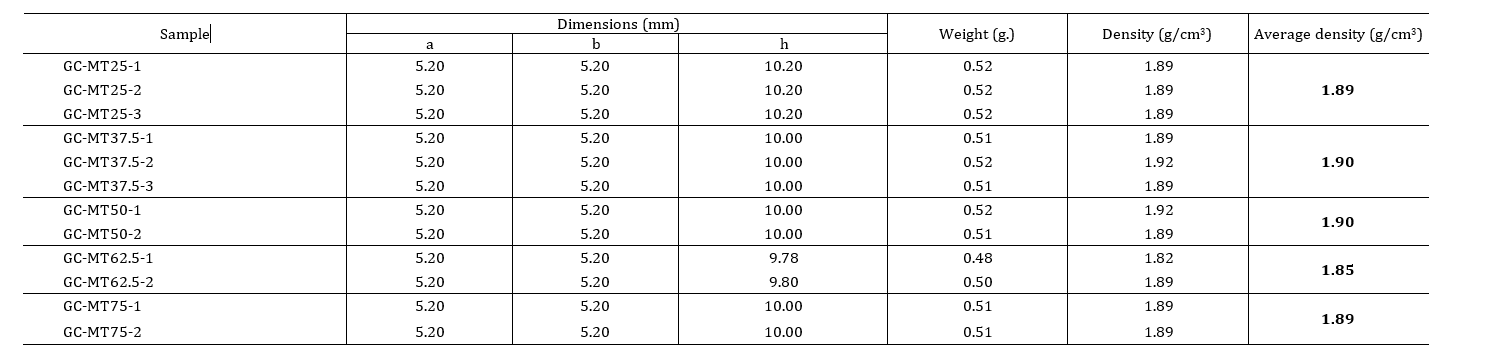

Table 2. Determination of geometric density for fabricated geopolymers.

The morphology of the GCs studied consisted of two well-differentiated phases: (i) a continuous phase in dark contrast corresponding to the geopolymer (MT) and (ii) scattered particles in light contrast which are located within the continuous phase and correspond to the FS. The continuous dark geopolymer phase is made up of fairly small particles compared to the size of the FS particles. It should be noted that a direct correlation has been observed between the presence of light contrast dispersed particles and the initial volumetric percentage of FS, that is, as the volumetric fraction of FS increases from 25% (CG-MT75) to 75% (CG-MT25) also increases the presence of scattered particles of clear contrast in the micrographs obtained by light microscopy (Fig. 3).

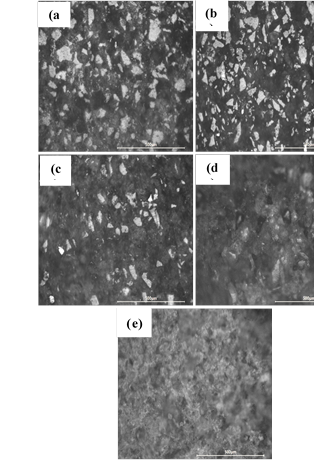

Fig. 3: Micrographs by optical microscopy of five types of GCs. (a) GC-MT25, (b) GC-MT37.5,

3.2. Geopolymer concrete creep

As mentioned in section 2.3, uniaxial compression tests at constant compression rate and at temperatures between 500 and 600 ºC were carried out before the creep tests. Fig. 4 reports the results for all the GCs studied. A totally fragile mechanical behavior has been found when the GCs were tested at 500 ºC (figure 4 (a)) and completely ductile when they were tested at 600 ºC (figure 4 (b)), this result suggested a transition stage in the mechanisms microscopic against external stress by increasing the test temperature from 500 to 600 ºC. Based on these results, it was decided to delimit the parameters for creep tests to the temperature range between 500 and 600 ºC, and it was also determined that the range of stresses optimum for all creep tests is between 20 and 40 MPa Finally, Table 3 summarizes the parameters used in the creep tests carried out in this research.

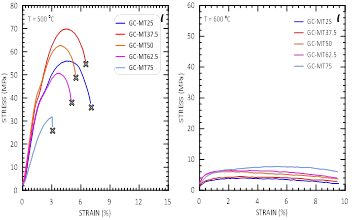

Fig. 4: Stress vs. strain curves of GCs tested at (a) 500 and (b) 600 ºC

Table 3: Experimental conditions for GCs creep tests

Type of test Temperature (ºC) Stress (MPa)
type I 525 40
type II 575 20

The development of the type I creep tests had the following stages (i) controlled heating of the sample to 525 ºC at a constant rate of 10 ºC/min., (ii) isotherm at 525 ºC for 1 hour until thermal equilibrium, (iii) compression of the sample up to 40 MPa and at a temperature of 525 ºC and (iv) steady flow at constant temperature and stress.

Fig. 5 shows strain vs. time curves and show the different mechanical responses in creep of the GCs to a constant external stress, it is clearly observed that the increase of the geopolymer phase (MT activated with a solution of Na(OH)) in the GCs, leads to a greater strain in a shorter period of time.

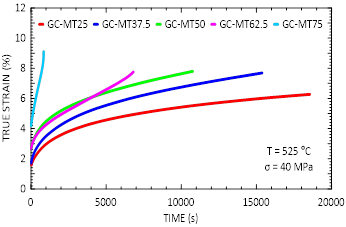

Fig. 5: True strain vs. time curves for GC samples tested in creep at 525 ºC and 40 MPa.

On the other hand, Fig. 6 presents strain rate vs. strain or simply creep curves for the five types of GCs studied.

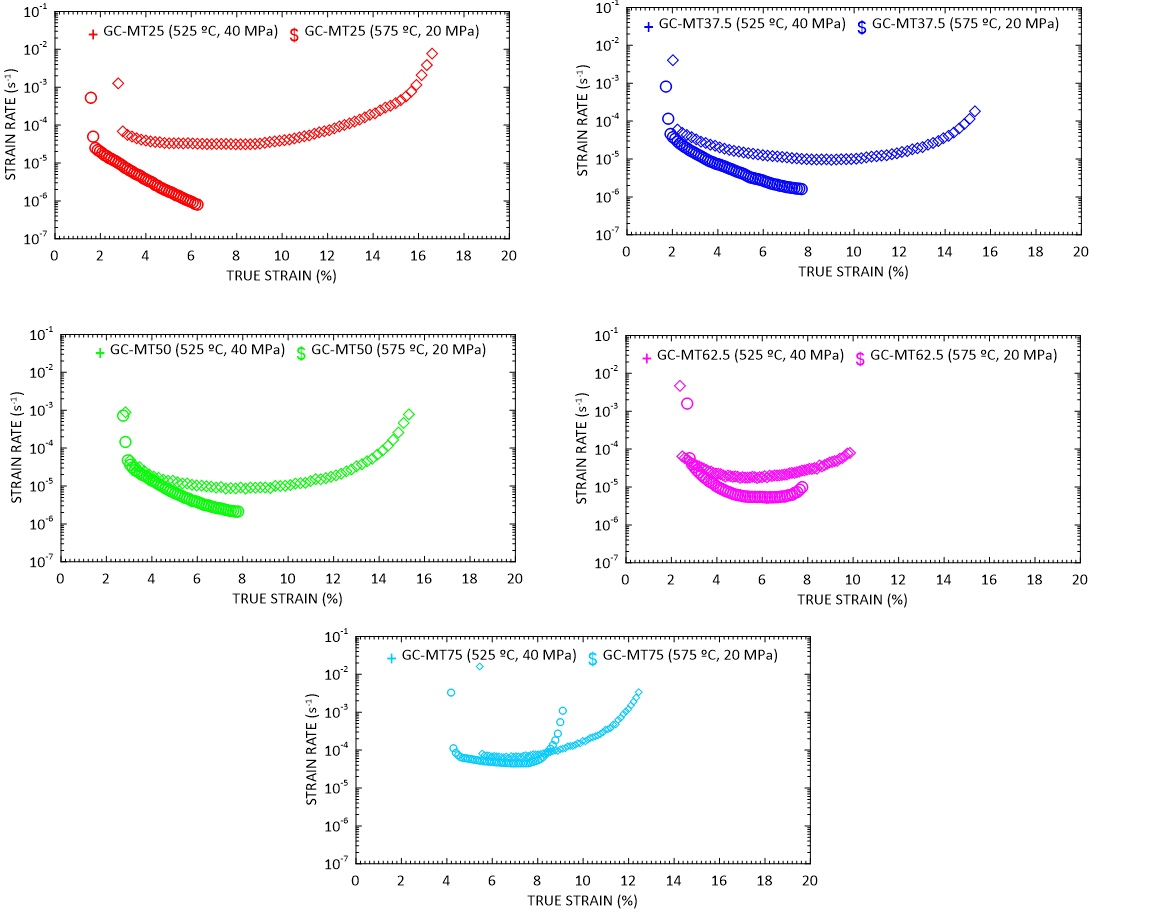

Fig. 6: Strain rate vs. true strain curves for GCs samples tested in creep at 525 ºC and 40 MPa.

In all creep tests, three deformation states can be identified: (i) the first is called primary or transient creep and is characterized by a rapid decrease in the strain rate after the initial application of the load, (ii) the second is called secondary or stationary creep and is the one described by the general equation of the steady state of plastic deformation (equation 2):


Where A is a constant, R the universal gas constant and the parameters n, p and Q are the stress exponent, the grain size exponent and the activation energy, respectively. Actually, the stationary strain rate is independent of time in constant tension tests, but not in constant load experiments (such as those carried out in this research) since the section of the sample increases with time. Therefore, in a representation  (strain rate vs. strain) of an ideal creep test, the stationary deformation rate decreases linearly with deformation, with a slope equal to the opposite of the stress exponent n and (iii) the third stage of the creep process corresponds to a rapid increase in the strain rate as a consequence of nucleation and coalescence of cavities that, eventually, ends with the breakage of the material; This regime is called tertiary or type III creep.

In our research, the creep studies carried out at 525 ºC and 40 MPa on the GCs shown in Fig. 6 have allowed to obtain values of the stress exponent n of 0.8, 0.7, 0.6, 0.5, 0.3 and 0.2 for the GCs with volumetric percentages of MT of 25, 37.5, 50, 62.5 and 75, respectively. These values of n suggest that the main strain mechanism in this type of materials is diffusion at grain boundaries. Type II creep tests had the following stages (i) controlled heating of the sample to 575 ºC at a constant rate of 10 ºC/min., (ii) isotherm at 575 ºC for 1 hour until thermal equilibrium, (iii) compression of the sample up to 20 MPa and at a temperature of 575 ºC and (iv) steady flow at constant temperature and stress.

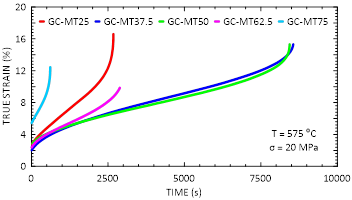

Fig. 7: True strain vs. time curves for GCs samples tested in creep at 575 ºC and 20 MPa.

The strain vs. time curves shown in Fig. 7 does not show a direct relationship between the percentage of geopolymeric phase and the strain rate of GCs, although as seen in Fig. 7, the GC with 75 vol.% MT (GC-MT75) is deformed and fails prematurely compared to others with lower geopolymer phase concentrations.

Fig. 8 shows creep curves at 575 ºC and 20 MPa for all the GCs tested, it can be noticed that in no case was it possible to enter a steady state of plastic deformation, going directly from the state of initial transient creep to that of tertiary creep or of material rupture, therefore, it was not possible to determine the exponents of tension n from these creep curves.

Fig. 8: Strain rate vs. true strain curves for GCs samples tested in creep at 575 ºC and 20 MPa
Fig. 9: Creep curves for geopolymers of different volumetric compositions. Effect of temperature and stress.

Fig. 9 shows creep curves for geopolymers evaluated in two test conditions: (i) 525 ºC and 40 MPa and (ii) 575 ºC and 20 MPa, from these curves a clear increase in strain rate can be observed when increase the test temperature from 525 to 575 ºC, and although the load was reduced from 40 to 20 MPa to compensate for the effect of temperature, it has been possible to verify that the temperature variable (on the strain rate) is more significant than the stress for the studied materials. Finally, Fig. 10 shows the macroscopic appearance of a specimen after a creep test.

Fig. 10: Macroscopic appearance of a creep deformed geopolymer.

4. Conclusions

Geopolymeric concretes have been successfully elaborated from the geopolymerization of mining tailings powders with a 9 molar solution of sodium hydroxide as a hardening agent and without the addition of Portland cement.

It was not possible to find a correlation between the geometric density of the studied geopolymeric concretes and the volumetric fractions of the precursor components. In general, the average density of all the studied geopolymeric concretes was 1.9 g/cm3.

The morphology found in the geopolymeric concretes consisted of two well differentiated phases, one of dark contrast and continuous geopolymer and the other of individual and dispersed light contrast particles located within the continuous geopolymer phase. The geopolymer phase is formed from very small mining tailings particles, in addition there is a direct correlation between the presence of clear contrast particles and the initial volume fraction of fine sand in the manufactured geopolymeric concrete, therefore, the individual particles correspond to added fine sand.

A totally fragile mechanical response was identified when the geopolymeric concretes were tested at 500 ºC and completely ductile when they were tested at 600 ºC, this result suggests an evolution in the microscopic mechanisms of deformation against external stress when increasing the test temperature from 500 to 600 ºC.

The creep studies carried out at 525 ºC and 40 MPa allowed obtaining values of the stress exponent n of 0.8, 0.7, 0.6, 0.5, 0.3 and 0.2 for geopolymeric concretes with volumetric percentages of mining tailings of 25, 37.5, 50, 62.5 and 75, respectively. These values of n suggest that the main deformation mechanism in this type of materials is diffusion at grain boundaries.

In the creep studies carried out at 575 ºC and 20 MPa for all the geopolymeric concretes studied, it was not possible to enter a stationary state of plastic deformation, going directly from the state of initial transient creep to that of tertiary creep. Therefore, under these creep test conditions it has not been possible to determine values for the stress exponents n.


This work was financed by the project Concytec - Banco Mundial, through its executing unit the Fondo Nacional de Desarrollo Científico, Tecnológico y de Innovación Tecnológica (Fondecyt) within the framework of call E041-01 with contract N° 36-2018-FONDECYT-BM-IADT-AV and was executed in the laboratories of the Universidad Católica San Pablo.
